PackageTO-220AB
MountingThrough Hole
Quick Jump:
Technical Specifications
Taiwan Semiconductor SR1660 technical specifications.
General
Package/Case
TO-220AB
Forward Current
16A
Height
8.24mm
Length
10.5mm
Max Forward Surge Current (Ifsm)
170A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
500uA
Max Reverse Leakage Current
500uA
Max Surge Current
200A
Mount
Through Hole
Package Quantity
2000
Packaging
Rail/Tube
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Taiwan Semiconductor SR1660 Datasheet
Download the complete datasheet for Taiwan Semiconductor SR1660 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

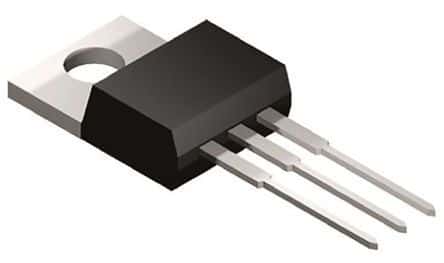

Product Images
