The SS310 Schottky diode is a 100V device with a maximum forward current of 3A and a maximum power dissipation of 400mW. It features a reverse recovery time of 25ns and a maximum reverse leakage current of 100uA. The diode is packaged in a surface mount package and is available in quantities of 3000 per reel. It is compliant with RoHS regulations but not Reach SVHC compliant. Operating temperature range is not specified.
PackageSMD/SMT
Power400mW
Quick Jump:
Technical Specifications
Taiwan Semiconductor SS310 technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 3A |
| Max Forward Surge Current (Ifsm) | 75A |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Leakage Current | 100uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 25ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SS310 Datasheet
Download the complete datasheet for Taiwan Semiconductor SS310 to view detailed technical specifications.
No datasheet is available for this part.

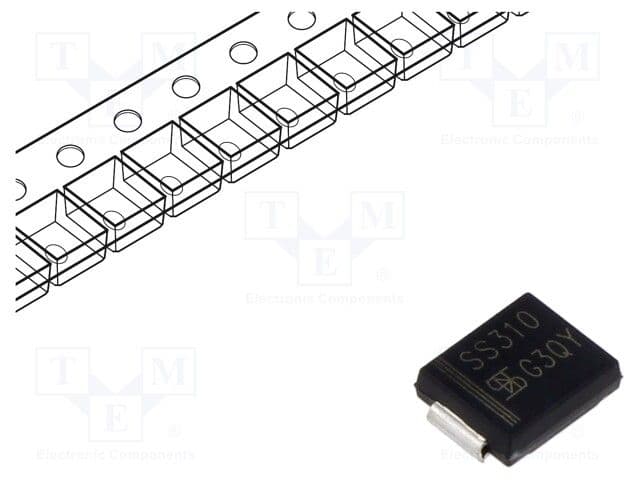

Product Images
