Surface mount fixed inductor with 5.6nH inductance and 0.42A DC current rating. Features a 0402 case size, ferrite core, and 200mΩ DC resistance. Operates across a -55°C to 125°C temperature range with a Q factor of 8 at 100MHz. This component is halogen-free and RoHS compliant, packaged on tape and reel.
Package0402
Current Rating550mA
MountingSurface Mount
Inductance5.6nH
Quick Jump:
Technical Specifications
Taiyo Yuden AQ1055N6S-T technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
550mA
DC Current
420mA
DC Resistance (DCR)
200mR
Depth
0.7mm
Halogen Free
Halogen Free
Height
0.5mm
Inductance
5.6nH
Length
1mm
Max DC Current
550mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
10
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
4GHz
Series
AQ
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.024inch
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden AQ1055N6S-T Datasheet
Download the complete datasheet for Taiyo Yuden AQ1055N6S-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

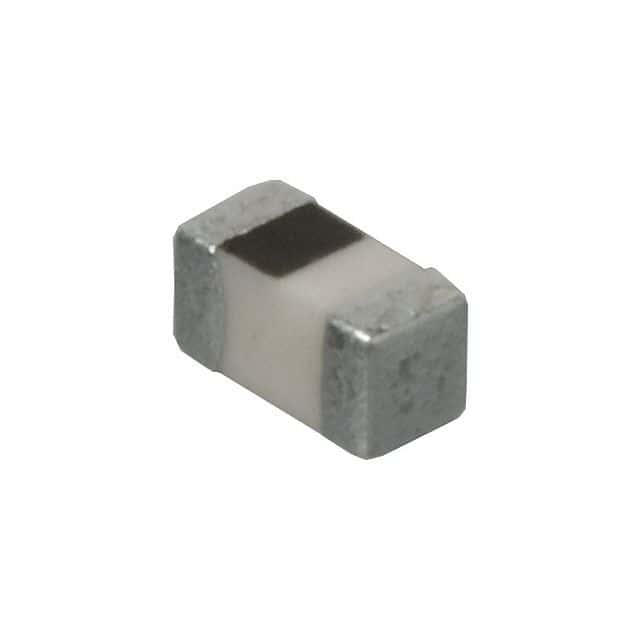

Product Images
