Ferrite chip for data line EMI/RFI filtering. Features a 68 Ohm impedance at 100MHz, with a 700mA maximum current rating. This surface mount component utilizes a ferrite core and is housed in an EIA STD 0402 package (1005 metric). Operating temperature range is -55°C to 125°C.
Package0402
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden BK1005HS680-T technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Depth
0.55mm
Height
0.5mm
Impedance
68R
Length
1mm
Max Current Rating
700mA
Max DC Current
700mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Lines
1
Package Quantity
10000
Packaging
Tape and Reel
RMS Current (Irms)
700mA
RoHS Compliant
Yes
Series
BK
Series Resistance
100mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden BK1005HS680-T Datasheet
Download the complete datasheet for Taiyo Yuden BK1005HS680-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

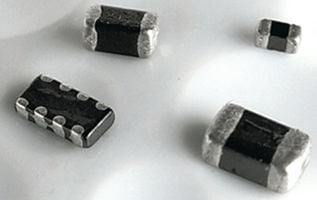

Product Images
