Surface mount shielded wirewound power inductor with 33µH inductance and 20% tolerance. Features a ferrite core, 370mA RMS current rating, and 1.008Ω DC resistance. Operates within a -25°C to 120°C temperature range and is RoHS compliant. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating370mA
MountingSurface Mount
Inductance33uH
Quick Jump:
Technical Specifications
Taiyo Yuden NR3015T330M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 370mA |
| DC Resistance (DCR) | 1.008R |
| Depth | 3.1mm |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| Height - Seated (Max) | 0.059inch |
| Inductance | 33uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.118inch |
| Max DC Current | 390mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 370mA |
| RoHS Compliant | Yes |
| Saturation Current | 390mA |
| Self Resonant Frequency | 18MHz |
| Series | NR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NR3015T330M Datasheet
Download the complete datasheet for Taiyo Yuden NR3015T330M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

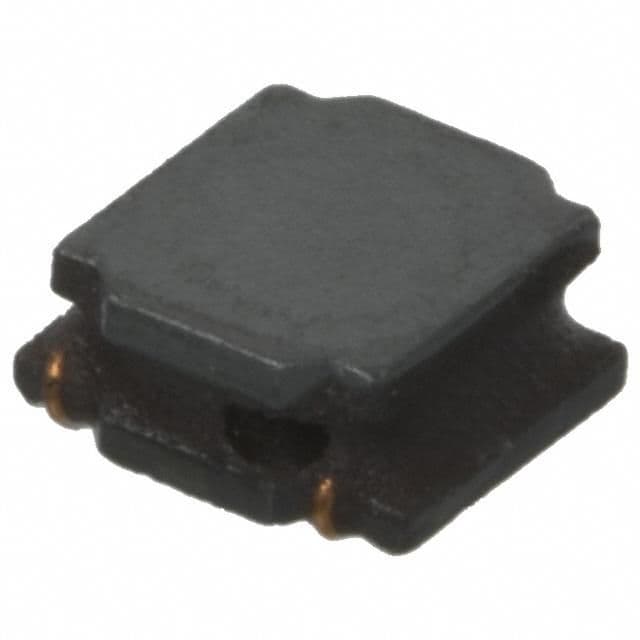

Product Images
