Surface mount shielded wirewound power inductor with 4.7µH inductance and 20% tolerance. Features a ferrite core, 1.06A current rating, and 156mΩ DCR at 100kHz. Operating temperature range from -40°C to 125°C, AEC-Q200 qualified, and RoHS compliant. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating1.06A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Taiyo Yuden NRH3012T4R7MNV technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.06A |
| DC Resistance (DCR) | 156mR |
| Depth | 3mm |
| Halogen Free | Halogen Free |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 4.7uH |
| Length | 0.118inch |
| Max DC Current | 1.06A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Saturation Current | 1A |
| Self Resonant Frequency | 50MHz |
| Series | NRH |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.000882oz |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NRH3012T4R7MNV Datasheet
Download the complete datasheet for Taiyo Yuden NRH3012T4R7MNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

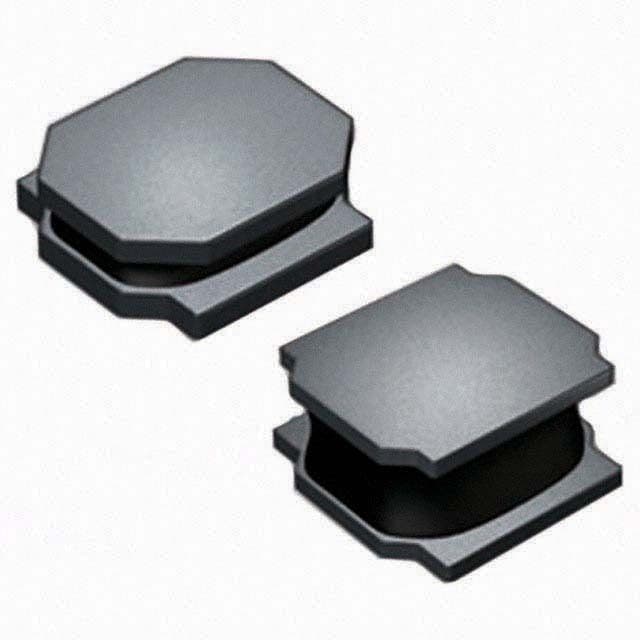

Product Images
