Surface mount fixed inductor with 4.7uH inductance and 20% tolerance. Features a 1.7A current rating, 84mR DC resistance, and 2A saturation current. Operates within a -25°C to 125°C temperature range. Shielded ferrite core construction with a 4mm x 4.2mm x 1.8mm footprint.
PackageNonstandard
Current Rating1.7A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Taiyo Yuden NRS4018T4R7MDGJ technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.7A |
| DC Resistance (DCR) | 84mR |
| Depth | 4.2mm |
| Halogen Free | Halogen Free |
| Height | 1.8mm |
| Height - Seated (Max) | 0.071inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Lead Pitch | 2.8mm |
| Length | 4mm |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.7A |
| RoHS Compliant | Yes |
| Saturation Current | 2A |
| Self Resonant Frequency | 35MHz |
| Series | NRS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NRS4018T4R7MDGJ Datasheet
Download the complete datasheet for Taiyo Yuden NRS4018T4R7MDGJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

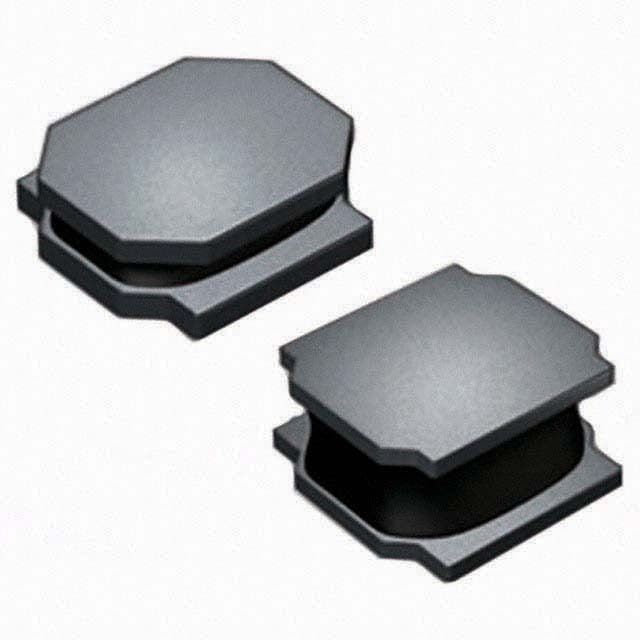

Product Images
