SMD shielded general purpose fixed inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 2.4A RMS current rating, and 3.1A saturation current. Operating temperature range from -25°C to 125°C. Dimensions: 6mm length, 6.2mm depth, 4.5mm height. RoHS compliant and halogen-free.
PackageNonstandard
Current Rating2.4A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Taiyo Yuden NRS6045T100MMGK technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.4A |
| DC Resistance (DCR) | 59.8mR |
| Depth | 6.2mm |
| Halogen Free | Halogen Free |
| Height | 4.5mm |
| Height - Seated (Max) | 0.177inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Lead Pitch | 4.7mm |
| Length | 6mm |
| Max DC Current | 3.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 2.4A |
| RoHS Compliant | Yes |
| Saturation Current | 3.1A |
| Self Resonant Frequency | 12MHz |
| Series | NRS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.236inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NRS6045T100MMGK Datasheet
Download the complete datasheet for Taiyo Yuden NRS6045T100MMGK to view detailed technical specifications.
No datasheet is available for this part.

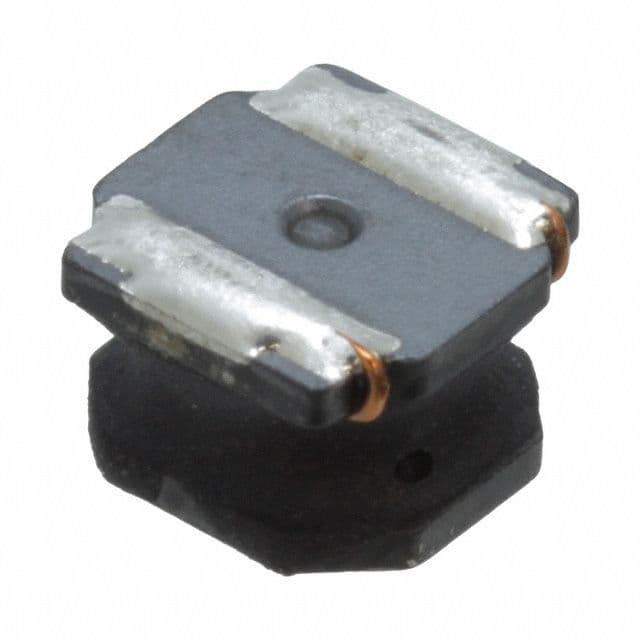

Product Images
