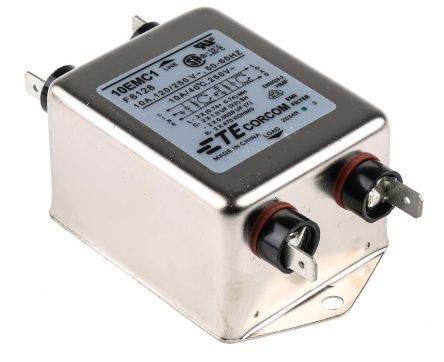

Power line filter designed for AC applications, operating at 50Hz/60Hz with a 10A current rating and a maximum voltage rating of 250VAC. Features include a 2.001µF capacitance, 210µA leakage current, and quick connect termination. This chassis mountable component, with dimensions of 52.6mm (width/length) x 97.8mm (depth), is UL approved and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 10EMC1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | AC |
| Approvals | UL |
| Capacitance | 2.001uF |
| Current | 10A |
| Current Rating | 10A |
| Depth | 97.8mm |
| ELV | Compliant |
| Frequency | 60Hz |
| Lead Free | Lead Free |
| Leakage Current | 210uA |
| Length | 52.6mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges, Panel |
| Operating Frequency | 50/60Hz |
| Package Quantity | 12 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EMC |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| Width | 52.6mm |
| RoHS | Compliant |
