Surface mount RF relay, SPDT configuration, featuring a 12V DC coil with 140mW power and 11.7mA current. Offers a 2A contact current rating with gold-plated nickel contacts, suitable for up to 250V AC and 220V DC. Operates within a -55°C to 85°C temperature range, with a 3ms operate time and 4ms release time, exhibiting -0.03dB insertion loss. This RoHS and ELV compliant component is designed for PCB termination.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1462051-4 technical specifications.
General
Actuating System
DC
Coil Current
11.7mA
Coil Power
140mW
Coil Resistance
1.028kR
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
2A
Contact Material
Nickel
Contact Plating
Gold
Contact Voltage Rating (DC)
220V
Depth
9.4mm
ELV
Compliant
Height
10mm
Insertion Loss
-0.03dB
Lead Free
Lead Free
Length
14.6inch
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
3ms
Package Quantity
400
Packaging
Box
Relay Type
Relay
Release Time
4ms
RoHS Compliant
Yes
Series
HF3, AXICOM
Termination
PCB
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Weight
2.5oz
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1462051-4 Datasheet
Download the complete datasheet for TE Connectivity 1462051-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

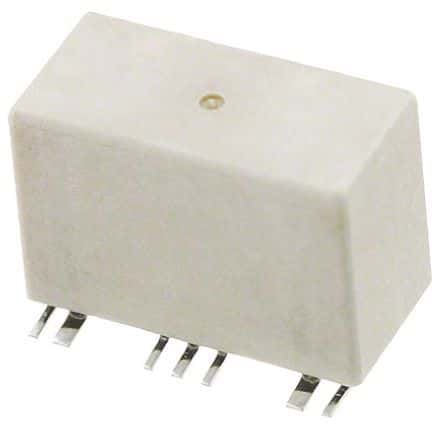

Product Images
