SPST DIP switch featuring a slide actuator with a polymer material and a 1.27mm pitch. This surface-mount component offers 4 circuits, 4 positions, and 4 switches with gold-plated copper alloy contacts. Rated for 24VDC and 25mA maximum current, it boasts a mechanical and electrical life of 1000 cycles and a flammability rating of UL94 V-0. The black polyphenylene housing is sealable and washable, with gull wing termination for SMD mounting.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1571983-4 technical specifications.
General
Actuator Length
0mm
Actuator Material
Polymer
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Current Rating
100mA
Contact Material
Copper Alloy
Contact Plating
Gold
Depth
8.13mm
Electrical Life
1000Cycles
ELV
Compliant
Flammability Rating
UL94 V-0
Height
7.31mm
Housing Color
Black
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
0.244inch
Max Current Rating
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
4
Number of Positions
4
Number of Switches
4
Orientation
Straight
Package Quantity
70
Packaging
Tape and Reel
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
GDH
Terminal Pitch
1.27mm
Termination
Gull Wing
Throw Configuration
SPST
Type
Switch
DC Rated Voltage
50V
Washable
Yes
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1571983-4 Datasheet
Download the complete datasheet for TE Connectivity 1571983-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

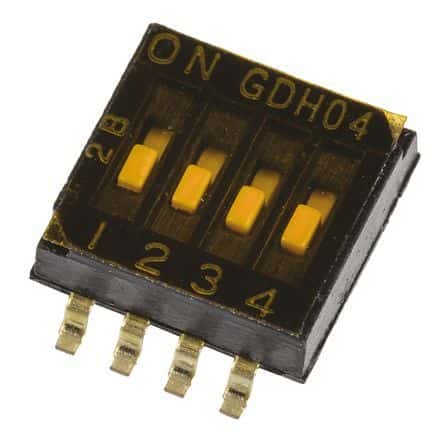

Product Images
