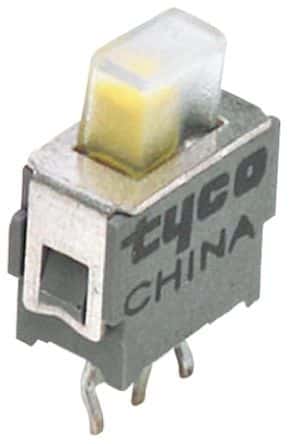

SPDT slide switch featuring a 2.8mm PBT actuator and PC pin termination for through-hole mounting. This waterproof switch offers a 20VDC/20VAC voltage rating with a 400mA contact current rating, utilizing gold-plated bronze contacts. Designed for 10,000 electrical and mechanical cycles, it operates within a -20°C to 80°C temperature range and meets UL94 V-0 flammability standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1825032-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 2.8mm |
| Actuator Material | PBT |
| Actuator Type | Standard |
| Contact Current Rating | 400mA |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 5mm |
| Electrical Life | 10000Cycles |
| ELV | Compliant |
| Features | WATERPROOF |
| Flammability Rating | UL94 V-0 |
| Height | 8mm |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 500gf |
| Orientation | Vertical |
| Package Quantity | 400 |
| Packaging | Bulk |
| PCB Mount Retention | With |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SE, Alcoswitch |
| Switch Function | On-On |
| Switch Travel | 2.2mm |
| Tail Length | 3.3mm |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Type | Switch |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
| Width | 5mm |
| RoHS | Compliant |
