10-position, 2-row male header for wire-to-board applications. Features a 2.54mm pitch and right-angle orientation for through-hole mounting. Contact material is bronze with gold and tin plating, rated for 1A and 250V AC. Housing is black plastic with UL94 V-0 flammability rating. Designed for signal applications with a mating cycle rating of 200.
Current Rating1A
MountingThrough Hole, Cable
Quick Jump:
Technical Specifications
TE Connectivity 2-746610-1 technical specifications.
General
Approvals
UL
Board Standoff
No (Without)
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
1A
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Gold, Tin
Current Rating
1A
Depth
7.06mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.253inch
Housing Color
Black
Insulation Diameter
1.07mm
Lead Free
Lead Free
Lead Length
2.5mm
Lead Pitch
2.54mm
Length
17.27mm
Material
Plastic, Glass
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Cycles
200
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Cable
Number of Contacts
10
Number of Poles
10
Number of Positions
10
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
50
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
3.18mm
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMP-LATCH
Shrouded
Yes (With)
Tail Length
3.96mm
Terminal Pitch
2.54mm
Termination
Solder
Width
0.278inch
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-746610-1 Datasheet
Download the complete datasheet for TE Connectivity 2-746610-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

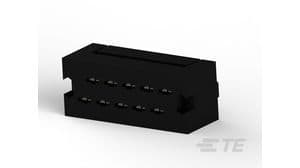

Product Images
