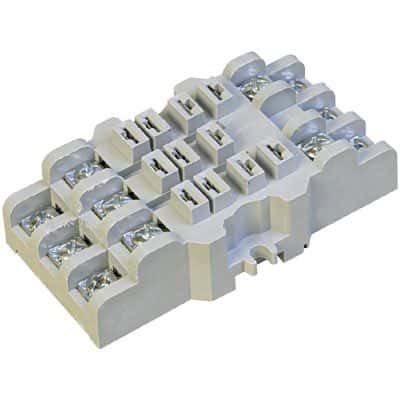

3-pole relay socket featuring screw terminals for secure connections. Constructed with a durable nylon body and insulation, it utilizes brass contacts with tin plating for reliable conductivity. This chassis and panel mountable socket operates at 120V AC and supports a 15A current rating. Designed for track mounting, it offers 3 rows and 11 positions for versatile application.
MountingChassis Mount, Panel
Quick Jump:
Technical Specifications
TE Connectivity 27E121 technical specifications.
General
| Body Material | Nylon |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 48.26mm |
| ELV | Compliant |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Mount | Chassis Mount, Panel |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 11 |
| Number of Rows | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KU |
| Termination | Screw |
| Voltage Rating (AC) | 120V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 27E121 Datasheet
Download the complete datasheet for TE Connectivity 27E121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
