SPST Keylock Switch with maintained and momentary action, featuring a 90° index angle and a flat brass key. Rated for 1A at 120VAC, this panel-mount switch utilizes silver contacts with silver plating and a non-shorting contact style. It offers 10,000 electrical and mechanical life cycles, with screw termination and a zinc alloy housing. RoHS compliant.
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 2SWK131AL101 technical specifications.
General
Actuator Material
Brass
Contact Current Rating
1A
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Current Rating
1A
Electrical Life
10000Cycles
ELV
Compliant
Index Angle
90°
Lead Free
Not Applicable
Material
ZINC ALLOY
Max Voltage Rating (AC)
120V
Mechanical Life
10000Cycles
Mount
Panel
Number of Poles
1
Number of Positions
2
Orientation
Straight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SWK
Switch Function
Off-On
Termination
Screw
Throw Configuration
SPST
Type
Switch
Voltage Rating (AC)
110V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2SWK131AL101 Datasheet
Download the complete datasheet for TE Connectivity 2SWK131AL101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

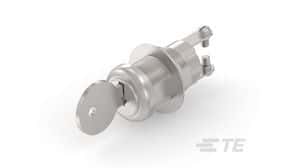

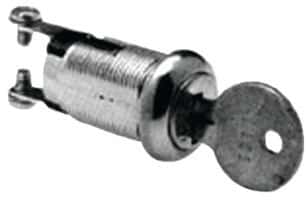

Product Images
