24VAC DPST-NO-DM 50A Panel Mount Power Relay. Features a 2-pole, double pole single throw normally open configuration with a 40A contact current rating and 600VAC maximum voltage rating. Operates with a 24VAC coil voltage and 11 Ohm coil resistance, utilizing silver-cadmium contact material. Panel mountable with quick connect termination, suitable for wire/cable gauges up to 4AWG. Approvals include UL, CSA, and CE, with a UL94 V-0 flammability rating.
Current Rating40A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 3100-20Q18999CL technical specifications.
General
Actuating System
AC
Approvals
UL, CSA, CE
Coil Resistance
11R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
40A
Contact Material
Silver, Cadmium
Current Rating
40A
Depth
53.3mm
ELV
Non-Compliant
Flammability Rating
UL94 V-0
Lead Free
Not Applicable
Length
83.8mm
Max Current Rating
40A
Max Operating Temperature
65°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Poles
2
Package Quantity
1
Packaging
Loose Piece
Reach SVHC Compliant
Unknown
Relay Type
Contactor
RoHS Compliant
Yes
Series
3100, Products Unlimited
Termination
Quick Connect
Throw Configuration
DPST
Width
2.61inch
Wire/Cable Gauge
4AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3100-20Q18999CL Datasheet
Download the complete datasheet for TE Connectivity 3100-20Q18999CL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

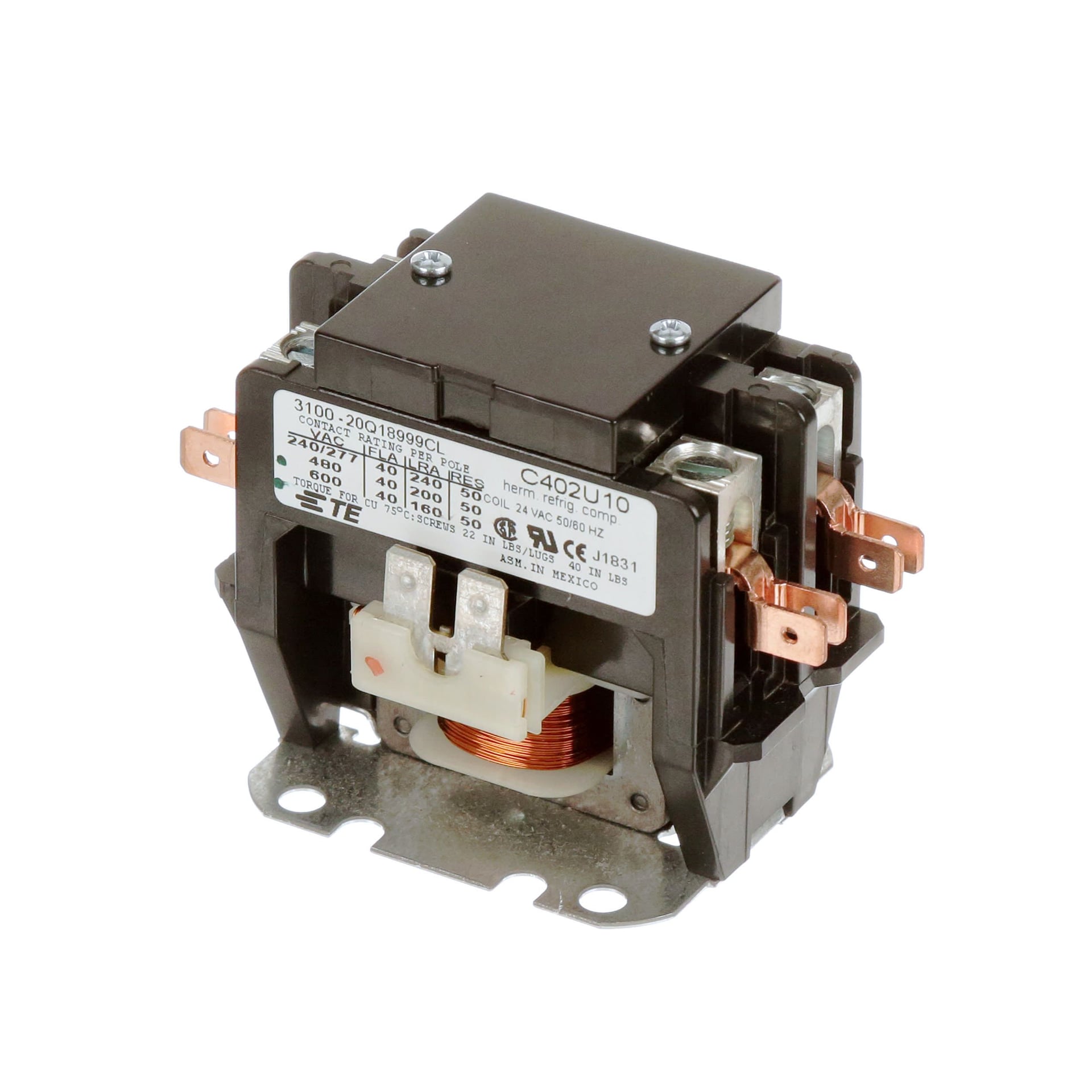

Product Images
