Frequency50|60 Hz
Current3A
Current Rating3A
MountingChassis Mount, Panel
Quick Jump:
Technical Specifications
TE Connectivity 3EP3 technical specifications.
General
| Application(s) | AC |
| Approvals | UL, CSA, VDE |
| Current | 3A |
| Current Rating | 3A |
| Depth | 85.1mm |
| ELV | Compliant |
| Lead Free | Lead Free |
| Leakage Current | 210uA |
| Length | 52.6mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Panel |
| Operating Frequency | 50|60 Hz |
| Package Quantity | 12 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | EP |
| Termination | Wire Leads |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3EP3 Datasheet
Download the complete datasheet for TE Connectivity 3EP3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

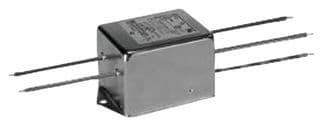

Product Images
