DPDT signal relay featuring a 5V DC non-latching coil with 113.64mA coil current and 568mW coil power. Contact current rating of 2A, with a maximum operating temperature of 125°C and a minimum of -65°C. Through-hole PCB mount with PC pin termination and a mechanical life of 100,000 hours.
MountingThrough Hole, PCB
Power50mW
Quick Jump:
Technical Specifications
TE Connectivity 3SBC1538A2 technical specifications.
General
Actuating System
DC
Coil Current
113.64mA
Coil Power
568mW
Coil Resistance
44R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
2A
Depth
7.8mm
ELV
Non-Compliant
Height
8.1mm
Lead Free
Contains Lead
Length
15.5mm
Life (Hours)
100000Hour
Max Current Rating
2A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Mount
Through Hole, PCB
Package Quantity
1
Packaging
Bulk
Power Consumption
50mW
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
No
Series
3SBC, CII
Termination
PC Pins
Throw Configuration
DPDT
Width
15.5mm
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity 3SBC1538A2 Datasheet
Download the complete datasheet for TE Connectivity 3SBC1538A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

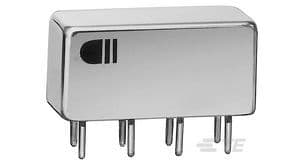

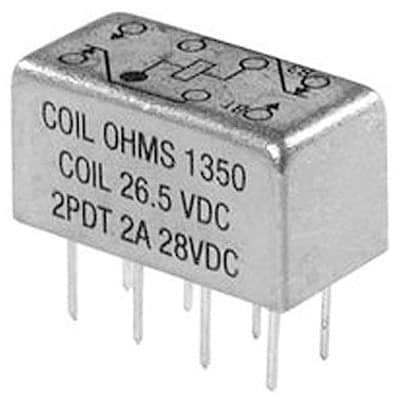

Product Images
