10-position SPST DIP switch featuring a straight, through-hole mount with PC pin termination and a 2.54mm terminal pitch. This rocker actuator switch offers a 1A contact current rating with gold-plated copper alloy contacts and a 60mA current rating. It boasts an electrical and mechanical life of 2000 cycles, operates within a -55°C to 105°C temperature range, and is UL94 V-0 flammability rated. The blue housing is constructed from glass, PET, and polyester, with a polyester actuator.
PackageDIP
Current Rating60mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5435640-7 technical specifications.
General
| Actuator Length | 1.27mm |
| Actuator Material | Polyester |
| Actuator Type | Rocker |
| Body Material | Glass, PET, Polyester |
| Package/Case | DIP |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 0.14inch |
| Current Rating | 60mA |
| Electrical Life | 2000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.34inch |
| Housing Color | Blue |
| Lead Free | Lead Free |
| Length | 27.43mm |
| Max Operating Temperature | 105°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Positions | 10 |
| Orientation | Straight |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | 7100 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 40V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5435640-7 Datasheet
Download the complete datasheet for TE Connectivity 5435640-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

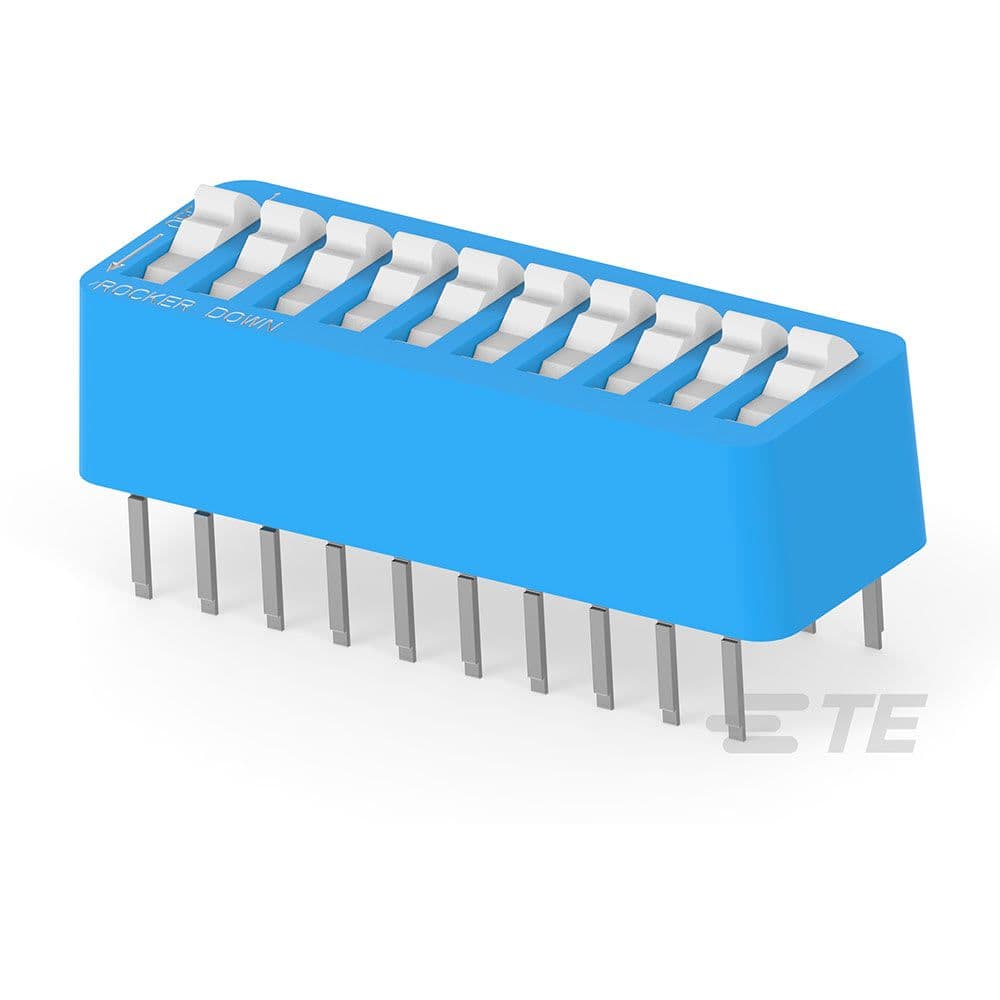

Product Images
