DPDT Time Delay Relay with 10A contact current rating and 240V AC voltage rating. Features a 110V AC coil voltage and 120V AC nominal input voltage. Panel mount design with screw termination. Operating temperature range from -30°C to 75°C. Approvals include UL, CSA, and CE.
Package120
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 7022AB technical specifications.
General
Actuating System
AC
Approvals
UL, CSA, CE
Package/Case
120
Coil Voltage (AC)
110V
Contact Current Rating
10A
Current Rating
15A
Depth
82.6mm
ELV
Non-Compliant
Lead Free
Not Applicable
Length
114.8mm
Max Current Rating
10A
Max Operating Temperature
75°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
240V
Mount
Panel
Nominal Input Voltage (AC)
120V
Package Quantity
1
Reach SVHC Compliant
Unknown
Relay Type
Relay
RoHS Compliant
No
Series
7000, AGASTAT
Termination
Screw
Throw Configuration
DPDT
Voltage Rating (AC)
240V
Width
82.5mm
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity 7022AB Datasheet
Download the complete datasheet for TE Connectivity 7022AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

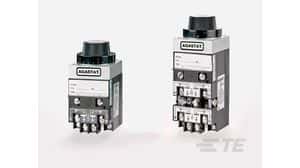

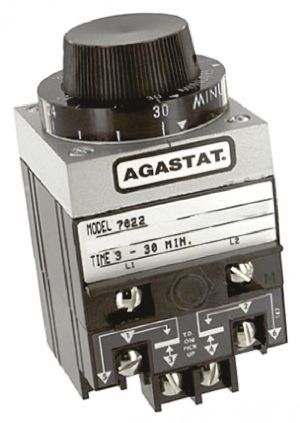

Product Images
