SPDT toggle switch with a 5A contact current rating and silver-plated copper contacts. Features a 12.19mm phenolic actuator, 2 positions, and PCB mounting. Operates within a -30°C to 85°C temperature range, with AC voltage ratings of 120V and 250V, and a DC voltage rating of 28V. UL94 V-1 flammability rating.
Package125
MountingPCB
Quick Jump:
Technical Specifications
TE Connectivity A101SDCQ04 technical specifications.
General
Actuator Length
12.19mm
Actuator Material
Phenolic
Package/Case
125
Contact Current Rating
5A
Contact Material
Copper, Silver
Contact Plating
Silver
Depth
6.86mm
ELV
Compliant
Flammability Rating
UL94 V-1
Length
12.7mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
PCB
Number of Positions
2
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Series
Gemini A
Termination
PCB
Throw Configuration
SPDT
Type
Switch
Voltage Rating (AC)
120V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity A101SDCQ04 Datasheet
Download the complete datasheet for TE Connectivity A101SDCQ04 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

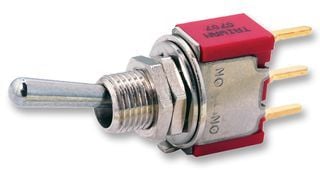

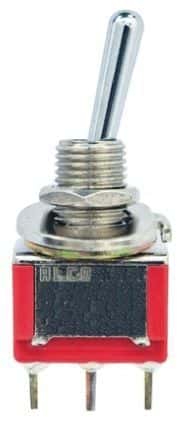

Product Images
