TE Connectivity
CBT50J470R
RESISTOR, CARBON COMPOSITION, 0.5W, 5%, 600ppm, 470ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
Resistance470R
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity CBT50J470R technical specifications.
General
| Diameter | 3.6mm |
| Lead Diameter | 0.7mm |
| Length | 9.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 470R |
| Resistance Tolerance | 5% |
| Resistor Type | Power resistor |
| RoHS Compliant | Yes |
| Series | CBT, Neohm |
| Technology | CARBON COMPOSITION |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 350V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CBT50J470R Datasheet
Download the complete datasheet for TE Connectivity CBT50J470R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

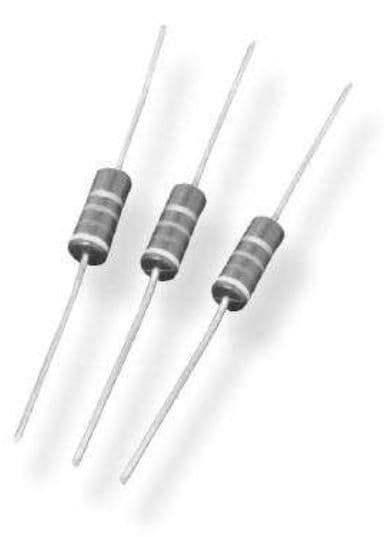

Product Images
