TE Connectivity
CFR16J100R
Fixed Resistor, Carbon Film, 0.25W, 100ohm, 200V, 5% +/-Tol, 450ppm/Cel, Through Hole Mount, AXIAL LEADED
PackageAxial
Resistance100R
Voltage Rating200V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity CFR16J100R technical specifications.
General
| Package/Case | Axial |
| Diameter | 1.85mm |
| ELV | Compliant |
| Length | 3.5mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resistance | 100R |
| Resistance Tolerance | 5% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | CFR16, Neohm |
| Technology | CARBON FILM |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CFR16J100R Datasheet
Download the complete datasheet for TE Connectivity CFR16J100R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

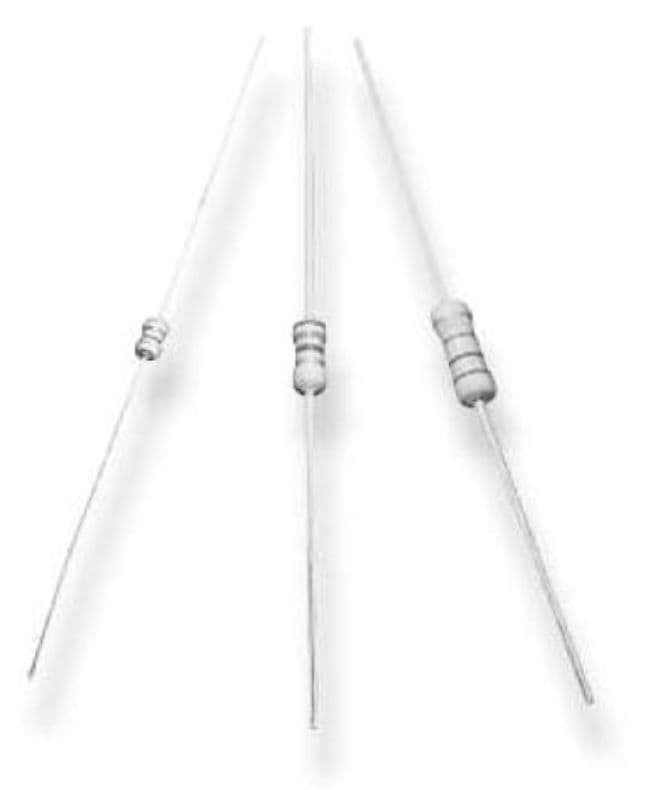

Product Images
