Axial leaded carbon film fixed resistor, 0.5W power rating, 51kΩ resistance with a 5% tolerance. Features a 350V operating voltage, 1200ppm/°C temperature coefficient, and operates between -55°C and 155°C. Through-hole mounting with axial terminations, packaged on tape and reel. RoHS compliant.
PackageAxial
Resistance51kR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity CFR50J51K technical specifications.
General
Package/Case
Axial
Diameter
3mm
ELV
Compliant
Length
9mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
350V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
51kR
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
CFR50, Neohm
Technology
CARBON FILM
Termination
Axial
Tolerance
5%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity CFR50J51K Datasheet
Download the complete datasheet for TE Connectivity CFR50J51K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

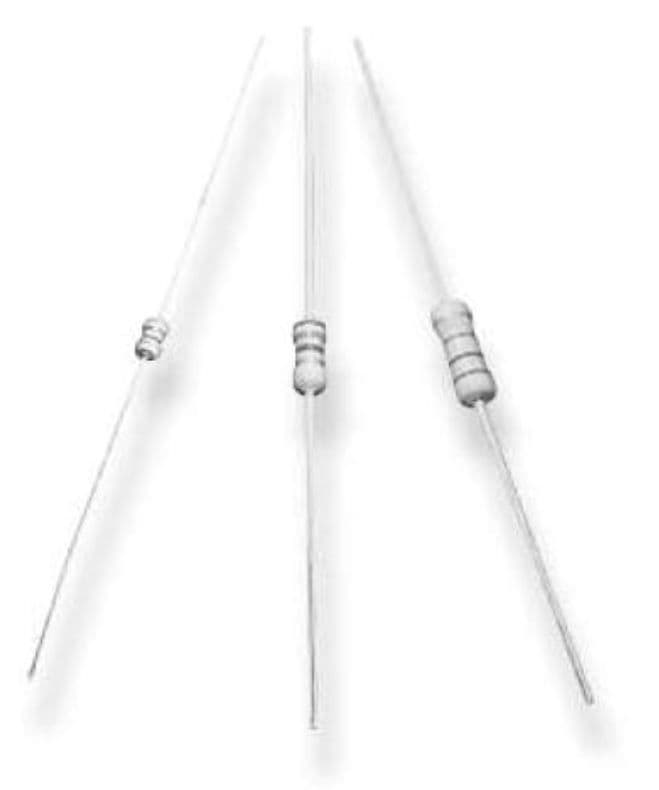

Product Images
