TE Connectivity
CRG0805F10K
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Package0805
Resistance10kR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity CRG0805F10K technical specifications.
General
Package/Case
0805
Depth
1.25mm
ELV
Compliant
Height
0.55mm
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Resistors
1
Number of Terminations
2
Packaging
Tape and Reel
Resistance
10kR
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRG0805
Technology
THICK FILM
Termination
Solder
Tolerance
1%
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity CRG0805F10K Datasheet
Download the complete datasheet for TE Connectivity CRG0805F10K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

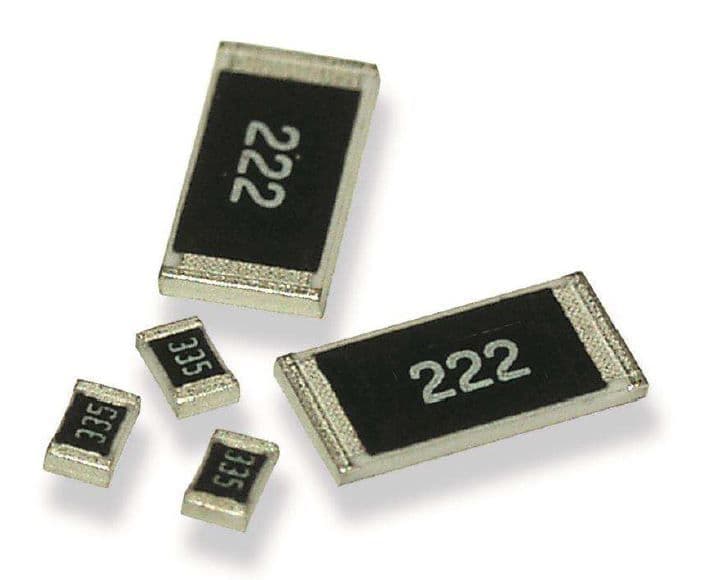

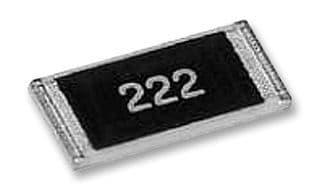

Product Images
