Surface mount thick film fixed resistor, 0805 case code, featuring 18kΩ resistance with a 1% tolerance. This component offers a 125mW power dissipation and a 150V operating voltage. Constructed with metal glaze/thick film technology, it operates within a -55°C to 125°C temperature range and is RoHS compliant.
Package0805
Resistance18kR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity CRG0805F18K technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Depth
1.25mm
ELV
Compliant
Height
0.55mm
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Military Standard
Not
Mount
Surface Mount
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
150V
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
18kR
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRG, Neohm
Technology
THICK FILM
Termination
Solder
Tolerance
1%
Voltage Rating
150V
DC Rated Voltage
150V
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity CRG0805F18K Datasheet
Download the complete datasheet for TE Connectivity CRG0805F18K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

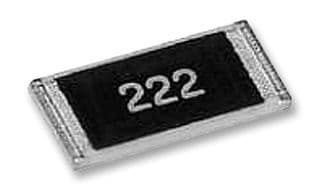

Product Images
