Surface mount fixed resistor featuring thick film technology and a 0805 case code. This component offers 0mR resistance with 0% tolerance, rated for 0.125W (125mW) power dissipation and a 150V operating voltage. Operating temperature range spans from -55°C to 125°C. Dimensions are 2mm length, 1.25mm width, and 0.55mm height. Packaged in tape and reel, this RoHS compliant component is suitable for solder termination.
Package0805
Resistance0mR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity CRG0805ZR technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| ELV | Compliant |
| Height | 0.55mm |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 150V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Resistance | 0mR |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRG |
| Technology | THICK FILM |
| Termination | Solder |
| Tolerance | 0% |
| Voltage Rating | 150V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CRG0805ZR Datasheet
Download the complete datasheet for TE Connectivity CRG0805ZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

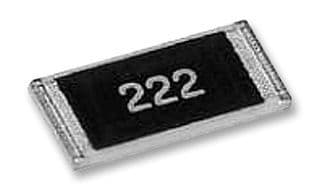

Product Images
