TE Connectivity
FCR1206J22R
RESISTOR, FUSIBLE, FILM, 0.125W, 5%, 1000ppm, 22ohm, SURFACE MOUNT, 1206, CHIP
Package1206
Resistance22R
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity FCR1206J22R technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| ELV | Compliant |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 125mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 22R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | FCR, Neohm |
| Termination | Solder |
| Tolerance | 5% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity FCR1206J22R Datasheet
Download the complete datasheet for TE Connectivity FCR1206J22R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

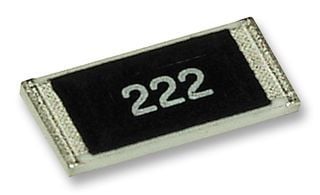

Product Images
