TE Connectivity
FRN25J220R
RESISTOR, FUSIBLE, FILM, 0.25W, 5%, 350ppm, 220ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
PackageAxial
Resistance220R
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN25J220R technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
220R
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN25J220R Datasheet
Download the complete datasheet for TE Connectivity FRN25J220R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

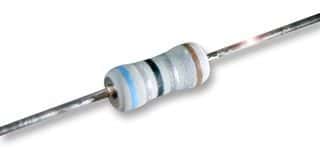

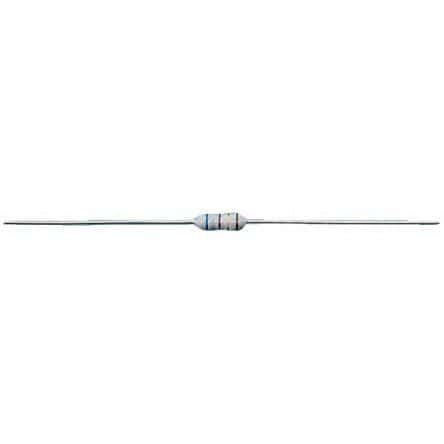

Product Images
