Axial leaded, through-hole mount fusible resistor featuring 4.7 ohm resistance with a 5% tolerance. This thin film, metal film resistor offers a 0.25W power rating and a 250V voltage rating. Operating across a wide temperature range from -55°C to 155°C, it has a diameter of 2.3mm and a length of 6.3mm. Tin plated contacts and axial terminations ensure reliable connections.
PackageAxial
Resistance4.7R
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN25J4R7 technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
4.7R
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN25J4R7 Datasheet
Download the complete datasheet for TE Connectivity FRN25J4R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

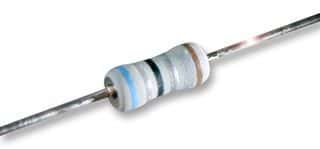

Product Images
