Axial-leaded fusible resistor with 100 Ohm resistance and 5% tolerance. Features a thin film technology, 0.5W power dissipation, and a 250V voltage rating. Operating temperature range is -55°C to 155°C. Packaged in tape and reel for through-hole mounting.
PackageAxial
Resistance100R
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN50J100R/S technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Military Standard
Not
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
100R
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN50J100R/S Datasheet
Download the complete datasheet for TE Connectivity FRN50J100R/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

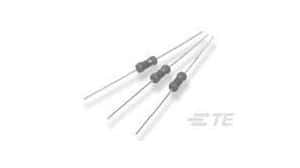

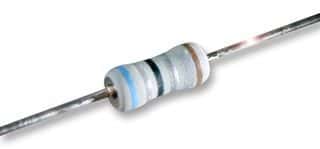

Product Images
