TE Connectivity
FRN50J2R2/S
RESISTOR, FUSIBLE, FILM, 0.5W, 5%, 350ppm, 2.2ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
PackageAxial
Resistance2.2R
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN50J2R2/S technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
2.2R
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN50J2R2/S Datasheet
Download the complete datasheet for TE Connectivity FRN50J2R2/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

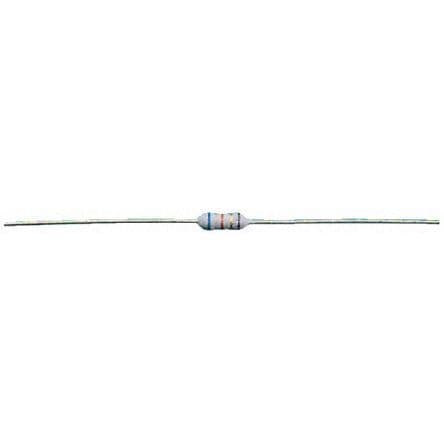

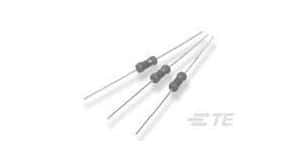

Product Images
