Axial-leaded, through-hole mount fusible resistor with thin film technology. Features 4.7 ohm resistance with a 5% tolerance and 0.5W power dissipation. Operates across a wide temperature range from -55°C to 155°C, with a DC rated voltage of 250V. Tin-plated contacts and axial terminations ensure reliable connection. Packaged in tape and reel for efficient assembly.
PackageAxial
Resistance4.7R
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN50J4R7/S technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
4.7R
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN50J4R7/S Datasheet
Download the complete datasheet for TE Connectivity FRN50J4R7/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

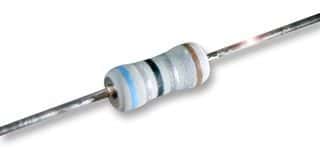

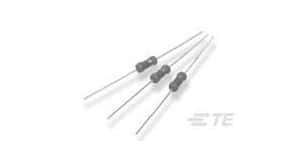

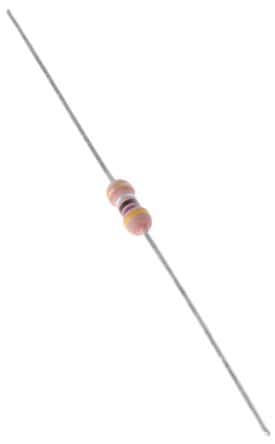

Product Images
