Radial leaded, through-hole mount fixed resistor featuring thick film technology with a resistance of 5MΩ and a tolerance of 1%. This component offers a 2W power rating, a voltage rating of 7.5kV, and operates across a temperature range of -55°C to 125°C. Key dimensions include a 3mm width and depth, 10.4mm height, 0.6mm lead diameter, and 5mm lead pitch. It is RoHS compliant and supplied in tray packaging.
PackageRadial
Resistance5MR
Voltage Rating7.5kV
MountingRadial
Quick Jump:
Technical Specifications
TE Connectivity HB15M0FZRE technical specifications.
General
Package/Case
Radial
Depth
3mm
Height
10.4mm
Lead Diameter
0.6mm
Lead Pitch
5mm
Length
26.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Radial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
7.5kV
Package Quantity
500
Packaging
Tray
Reach SVHC Compliant
Unknown
Resistance
5MR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
HB
Technology
THICK FILM
Termination
Radial
Tolerance
1%
Voltage Rating
7.5kV
DC Rated Voltage
7.5kV
Width
3mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HB15M0FZRE Datasheet
Download the complete datasheet for TE Connectivity HB15M0FZRE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

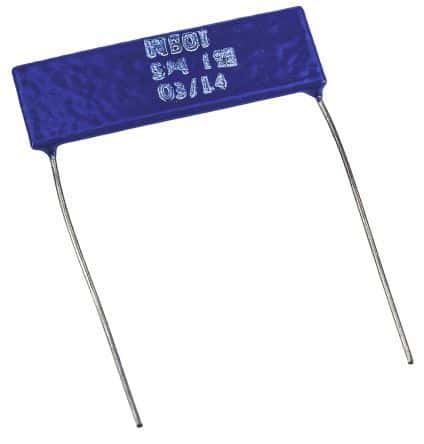

Product Images
