Technical Specifications
TE Connectivity HF353 technical specifications.
General
Coil Current
2A
Coil Resistance
178R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
2A
Contact Material
Silver, Gold
Insertion Loss
-0.12dB
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Package Quantity
400
Power Consumption
140mW
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
SMD/SMT
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HF353 Datasheet
Download the complete datasheet for TE Connectivity HF353 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

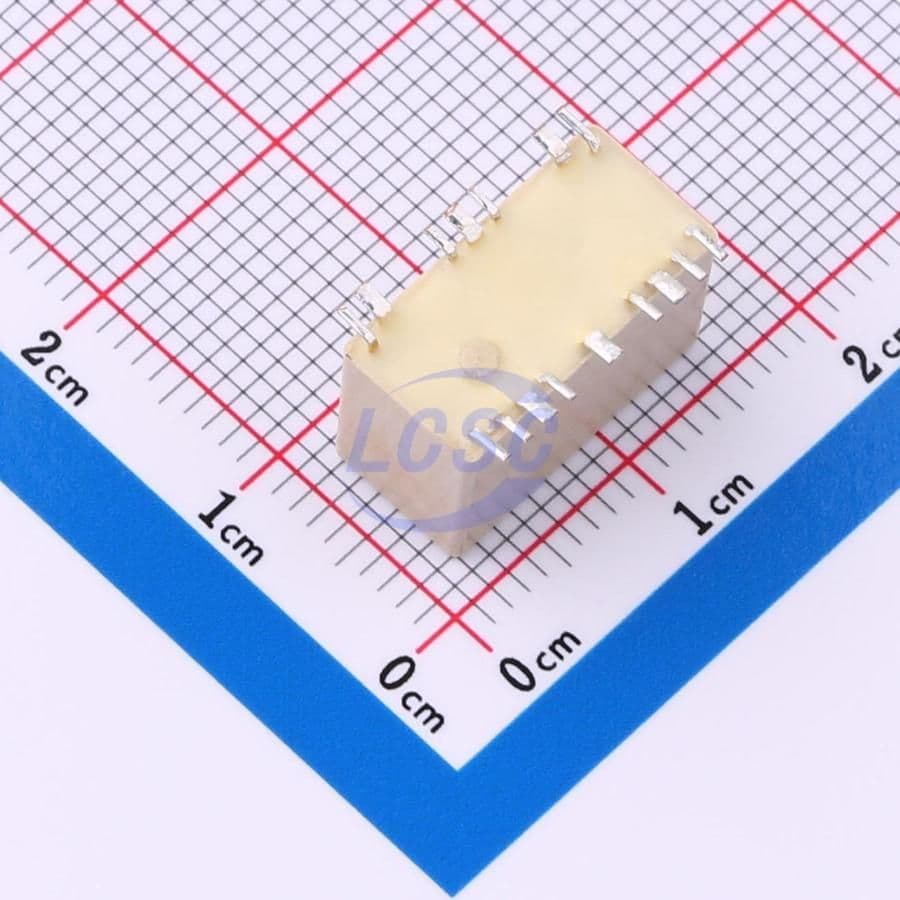

Product Images
