TE Connectivity
HSA5039RJ
Res Wirewound 39 Ohm 5% 50W ±50ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
Resistance39R
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA5039RJ technical specifications.
General
ELV
Compliant
Height
17mm
Lead/Base Style
Fixed
Length
51mm
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Resistance
39R
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HSA
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
DC Rated Voltage
1.25kV
Width
30mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA5039RJ Datasheet
Download the complete datasheet for TE Connectivity HSA5039RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

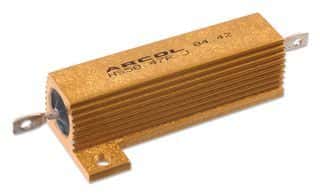

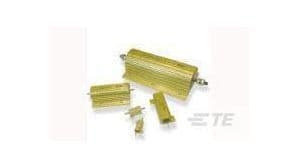

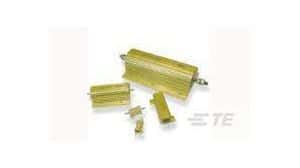

Product Images
