TE Connectivity
HSA503R9J
Res Wirewound 3.9 Ohm 5% 50W ±50ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
Resistance3.9R
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA503R9J technical specifications.
General
ELV
Compliant
Height
17mm
Lead/Base Style
Fixed
Length
51mm
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
No
Resistance
3.9R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HSA
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
DC Rated Voltage
1.25kV
Width
30mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA503R9J Datasheet
Download the complete datasheet for TE Connectivity HSA503R9J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

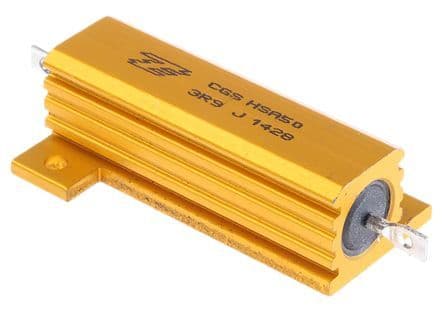

Product Images
