General purpose, 4PDT electromechanical relay featuring a latching, dual-coil actuating system. Operates on 120V AC coil voltage with 5300mW coil power and 44mA coil current. Contact ratings include 10A at 120V AC, with silver/cadmium contact material. Socket mount design with solder termination, suitable for panel mounting. Operating temperature range from -45°C to 85°C.
Package120
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity KB-17AG-120 technical specifications.
General
Actuating System
AC
Package/Case
120
Coil Current
44mA
Coil Power
5.3W
Coil Resistance
1.03kR
Coil Type
Latching, Dual Coil
Coil Voltage (AC)
120V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
120V
Depth
46.02mm
ELV
Non-Compliant
Height
36mm
Lead Free
Lead Free
Length
81.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
120V
Mount
Panel
Mounting Style
SOCKET
Operate Time
25ms
Packaging
Bulk
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
Yes
Series
KB
Termination
Solder
Throw Configuration
4PDT
Weight
10.794oz
Width
46mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KB-17AG-120 Datasheet
Download the complete datasheet for TE Connectivity KB-17AG-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

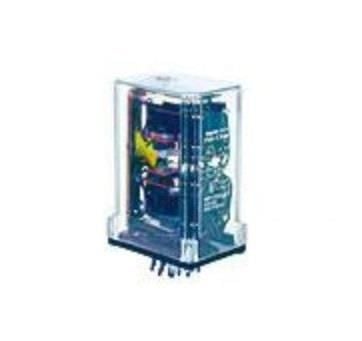

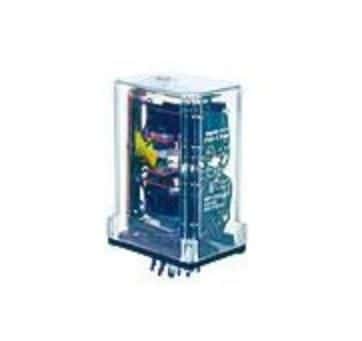

Product Images
