Metal film fixed resistor with 1MΩ resistance and 1% tolerance. Features 0.6W power dissipation and a 350V DC rated voltage. Designed for through-hole mounting with axial leads, operating across a -55°C to +155°C temperature range. This component utilizes metal film technology and is RoHS compliant.
PackageAxial
Resistance1MR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity LR1F1M0 technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.2mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
600mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
350V
Package Quantity
4000
Packaging
Ammo Pack
Reach SVHC Compliant
No
Resistance
1MR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
LR, Neohm
Technology
METAL FILM
Termination
Axial
Tolerance
1%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity LR1F1M0 Datasheet
Download the complete datasheet for TE Connectivity LR1F1M0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

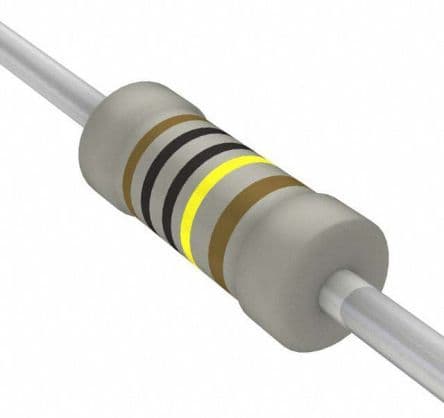

Product Images
