TE Connectivity
LR1F33R
Fixed Resistor, Metal Film, 0.6W, 33ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED
PackageAxial
Resistance33R
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity LR1F33R technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.2mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
600mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
33R
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
No
Series
LR, Neohm
Technology
METAL FILM
Termination
Axial
Tolerance
1%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity LR1F33R Datasheet
Download the complete datasheet for TE Connectivity LR1F33R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

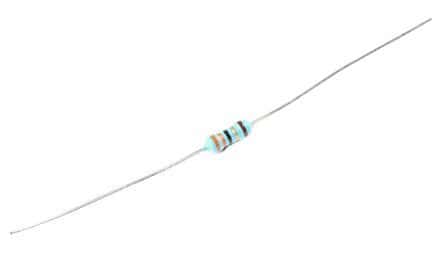

Product Images
