Axial leaded, through-hole mount fixed resistor featuring metal film technology. 0.6W power dissipation and 350V DC rated voltage. Offers 47.5kΩ resistance with a tight 1% tolerance. Operating temperature range from -55°C to 155°C, with a temperature coefficient of 50ppm/°C. Packaged on tape and reel for efficient assembly.
PackageAxial
Resistance47.5kR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity LR1F47K5 technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
Lead Diameter
0.55mm
Length
6.2mm
Max Operating Temperature
155°C
Max Power Dissipation
600mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
47.5kR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
LR, Neohm
Termination
Axial
Tolerance
1%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity LR1F47K5 Datasheet
Download the complete datasheet for TE Connectivity LR1F47K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

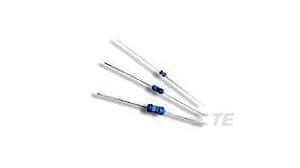

Product Images
