TE Connectivity
LR1F75K

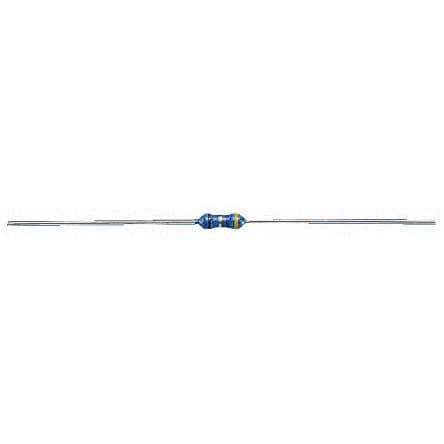

Fixed Resistor, Metal Film, 0.6W, 75000ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED
PackageAxial
Resistance75kR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity LR1F75K technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.2mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
600mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
75kR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
LR, Neohm
Technology
METAL FILM
Termination
Axial
Tolerance
1%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity LR1F75K Datasheet
Download the complete datasheet for TE Connectivity LR1F75K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
