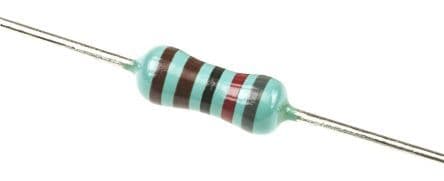

General purpose, metal film fixed resistor with 8.2 kΩ resistance and 1% tolerance. Features 0.6W power dissipation and a 350V DC rated voltage. Operating temperature range is -55°C to 155°C. Axial leaded, through-hole mount component with a 6.2mm length and 2.3mm diameter.
PackageAxial
Resistance8.2kR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity LR1F8K2 technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.2mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
600mW
Military Standard
Not
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
350V
Package Quantity
4000
Packaging
Ammo Pack
Reach SVHC Compliant
No
Resistance
8.2kR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
LR, Neohm
Technology
METAL FILM
Termination
Axial
Tolerance
1%
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity LR1F8K2 Datasheet
Download the complete datasheet for TE Connectivity LR1F8K2 to view detailed technical specifications.
