TE Connectivity
MHS23304
Switch Slide ON ON ON DP3T Extended Top Slide 0.3A 125VAC PC Pins Bracket Mount/Through Hole Frame
Quick Jump:
Technical Specifications
TE Connectivity MHS23304 technical specifications.
General
| Contact Current Rating | 300mA |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Flammability Rating | UL94 V-2 |
| Lead Free | Lead Free |
| Orientation | Vertical |
| Package Quantity | 560 |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | DP3T |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity MHS23304 Datasheet
Download the complete datasheet for TE Connectivity MHS23304 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

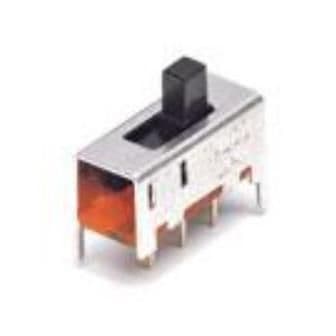

Product Images
