Technical Specifications
TE Connectivity MT2-C93418 technical specifications.
General
Application(s)
SIGNAL
Coil Power
200mW
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
2A
Contact Material
Gold, Silver
Depth
10mm
Height
11mm
Length
20.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
PCB
Reach SVHC Compliant
Unknown
Termination
Through Hole
Throw Configuration
DPDT
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity MT2-C93418 Datasheet
Download the complete datasheet for TE Connectivity MT2-C93418 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

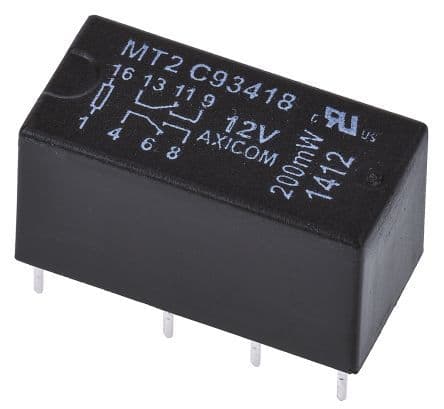

Product Images
