Surface mount PTC thermistor, 1206 case code (3216 metric), designed for overcurrent protection. Features a hold current of 120mA, trip current of 390mA, and a maximum supply voltage of 48V DC. Offers a maximum power dissipation of 500mW and operates within a temperature range of -40°C to 85°C. This component is RoHS compliant and UL, CSA, TUV approved, packaged in tape and reel for automated assembly.
Package1206
Voltage Rating48V
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
TE Connectivity NANOSMDC012F-2 technical specifications.
General
Approvals
UL, CSA, TUV
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
ELV
Compliant
Height
1mm
Hold Current
120mA
Lead Free
Lead Free
Length
3.4mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage (DC)
48V
Max Voltage Rating (DC)
48V
Mount
Surface Mount
Operating Supply Voltage
30V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PolySwitch®
Tab Width
0.25mm
Termination
SMD/SMT
Time to Trip
0.2s
Trip Current
390mA
Voltage Rating
48V
DC Rated Voltage
48V
Width
1.8mm
Working Voltage
48V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity NANOSMDC012F-2 Datasheet
Download the complete datasheet for TE Connectivity NANOSMDC012F-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

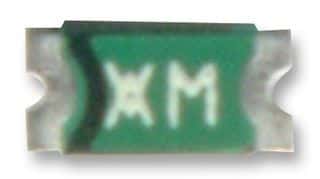

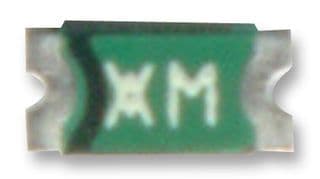

Product Images
