Illuminated rocker switch featuring SPST ON-OFF function and quick connect termination. Rated for 16A at 125VAC, with a mechanical life exceeding 100,000 cycles. Contact material is tin and silver with silver plating, and the switch is dust-proof and VDE tested. Operating temperature range is -20°C to 85°C.
Package125
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity PRASA1-16F-BB0BW technical specifications.
General
Actuator Type
Rocker
Package/Case
125
Color
White
Contact Current Rating
16A
Contact Material
Tin, Silver
Contact Plating
Silver
Current Rating
16A
Electrical Life
6000Cycles
ELV
Compliant
Illumination Type
Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Panel
Packaging
Tray
Ratings
Dust Proof
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PRA
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
SPST
Type
Switch
VDE Tested
Yes
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity PRASA1-16F-BB0BW Datasheet
Download the complete datasheet for TE Connectivity PRASA1-16F-BB0BW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

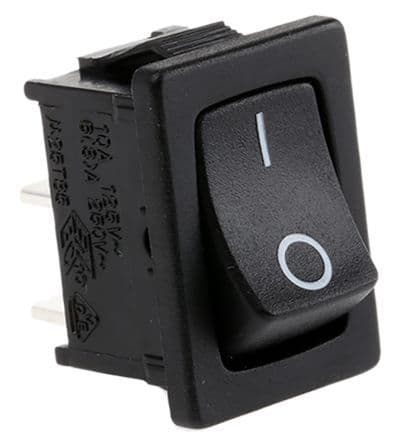

Product Images
