Illuminated rocker switch featuring a DPDT (Double Pole Double Throw) configuration with an On-Off-On function. Rated for 16A at 250VAC, this switch offers a mechanical life exceeding 100,000 cycles and an electrical life of 6,000 cycles. Contact material is tin and silver with silver plating, and it includes quick connect termination for panel mounting. Operating temperature range is -20°C to 85°C, and the unit is RoHS and VDE tested.
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity PRDDD3-16F-BB000 technical specifications.
General
Contact Current Rating
16A
Contact Material
Tin, Silver
Contact Plating
Silver
Current Rating
16A
Depth
29.3mm
Electrical Life
6000Cycles
ELV
Compliant
Illumination Type
Illuminated
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Positions
2
Orientation
Vertical
Package Quantity
50
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PRD
Switch Function
On-Off-On
Termination
Quick Connect
Throw Configuration
DPDT
Type
Switch
VDE Tested
Yes
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity PRDDD3-16F-BB000 Datasheet
Download the complete datasheet for TE Connectivity PRDDD3-16F-BB000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

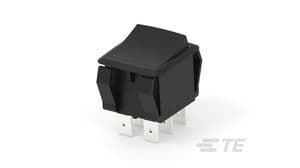

Product Images
