General purpose power relay with a 3PDT configuration, rated for 16A at 400VAC. Features a 24VAC coil with 2W coil power and 80 Ohm resistance, operating within a -40°C to 50°C temperature range. Plug-in termination and socket mount facilitate easy installation. Approvals include UL, CSA, and VDE.
Current Rating16A
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity RM732524 technical specifications.
General
Actuating System
AC
Application(s)
POWER
Approvals
UL, CSA, VDE
Coil Power
2W
Coil Resistance
80R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
16A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
400V
Current Rating
16A
Depth
35.5mm
Dropout Voltage
7.2V
ELV
Non-Compliant
Height
48.5mm
Lead Free
Not Applicable
Length
1.515inch
Max Operating Temperature
50°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
440V
Mount
Socket
Package Quantity
25
Packaging
Tray
Relay Type
General Purpose
RoHS Compliant
Yes
Series
RM, SCHRACK
Termination
Plug
Throw Configuration
3PDT
Weight
2.859oz
Width
35.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RM732524 Datasheet
Download the complete datasheet for TE Connectivity RM732524 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

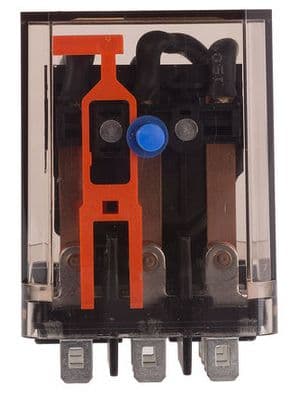

Product Images
