Surface mount thin film fixed resistor with 2kΩ resistance and 0.1% tolerance. Features a 0.1W power rating, 100V DC rated voltage, and 10ppm/°C temperature coefficient. Packaged in an 0805 case code, measuring 0.079" L x 0.049" W x 0.026" H, operating from -55°C to 155°C. RoHS compliant and supplied on tape and reel.
Package0805
Resistance2kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity RN73C2A2K0BTD technical specifications.
General
Case Code (Imperial)
0805
Package/Case
0805
Height
0.026inch
Length
0.079inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
100V
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
2kR
RoHS Compliant
Yes
Series
RN73, Holsworthy
Termination
SMD/SMT
Tolerance
0.1%
Voltage Rating
200V
DC Rated Voltage
100V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RN73C2A2K0BTD Datasheet
Download the complete datasheet for TE Connectivity RN73C2A2K0BTD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

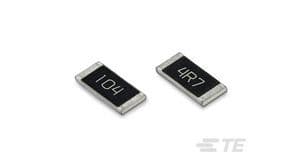

Product Images
